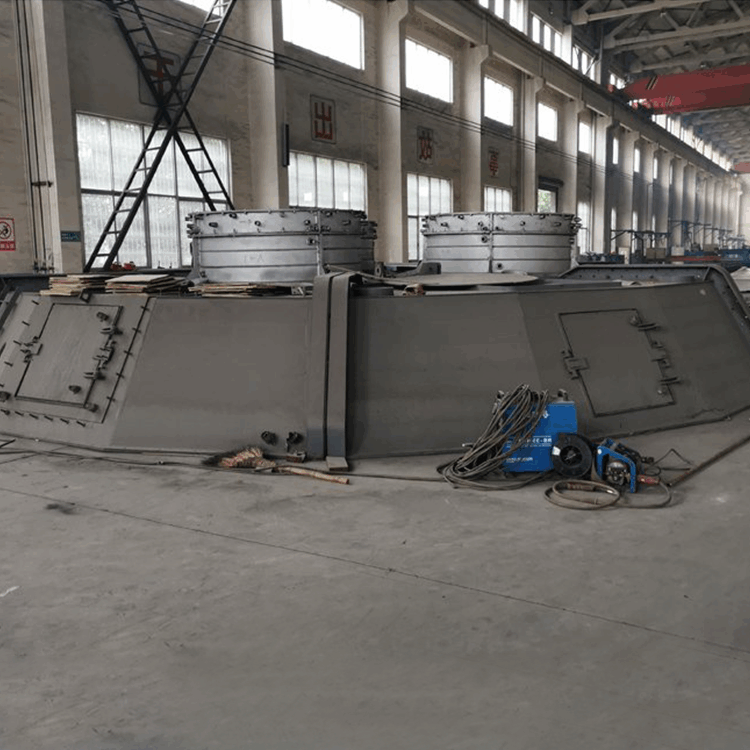

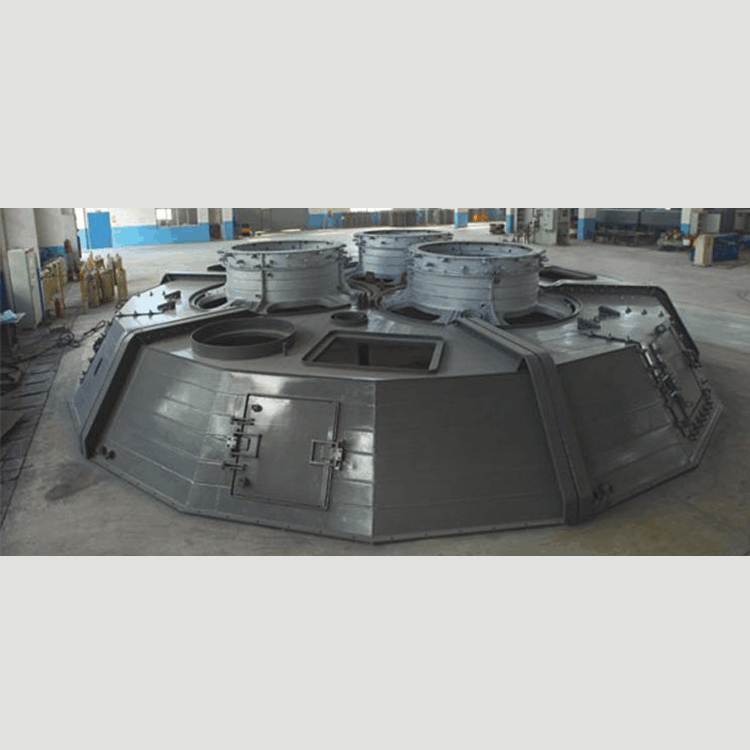

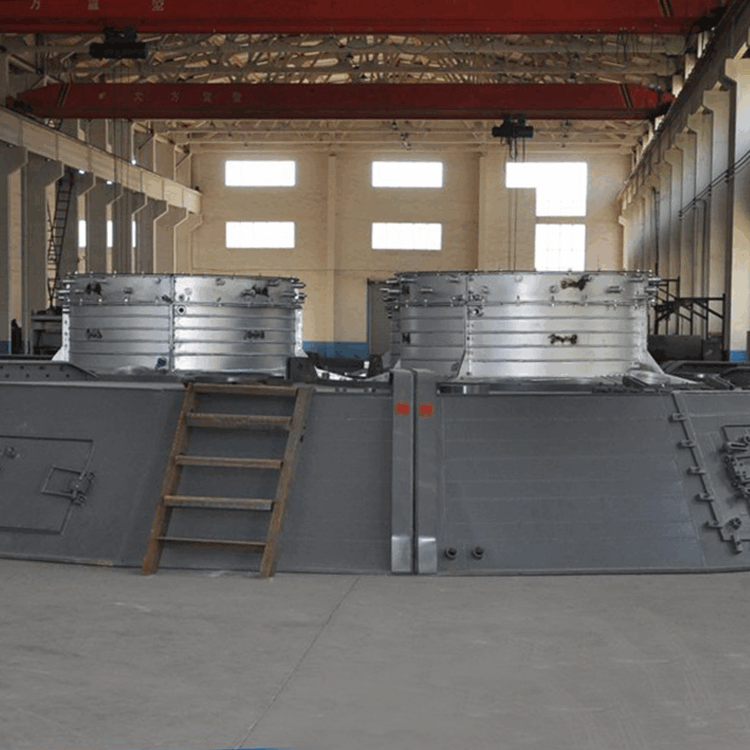

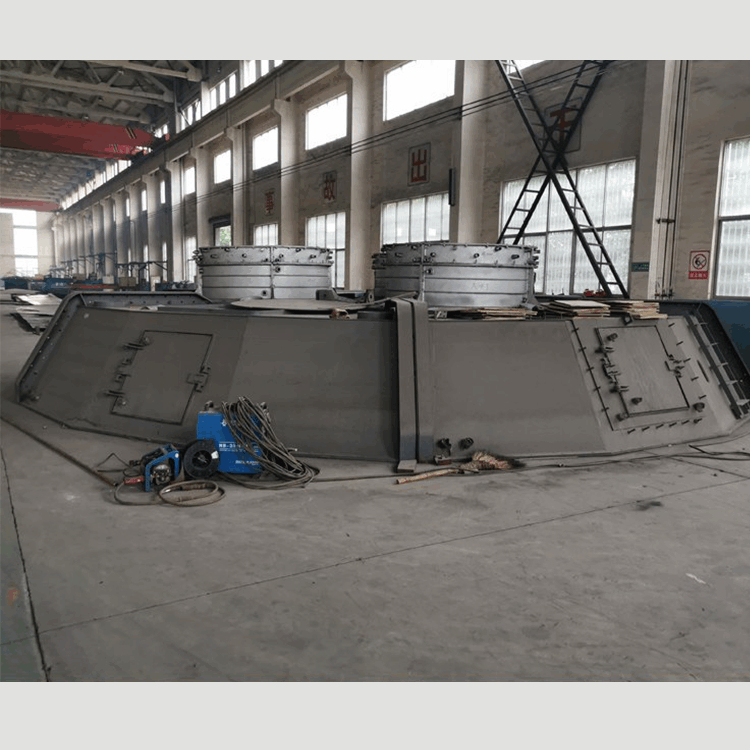

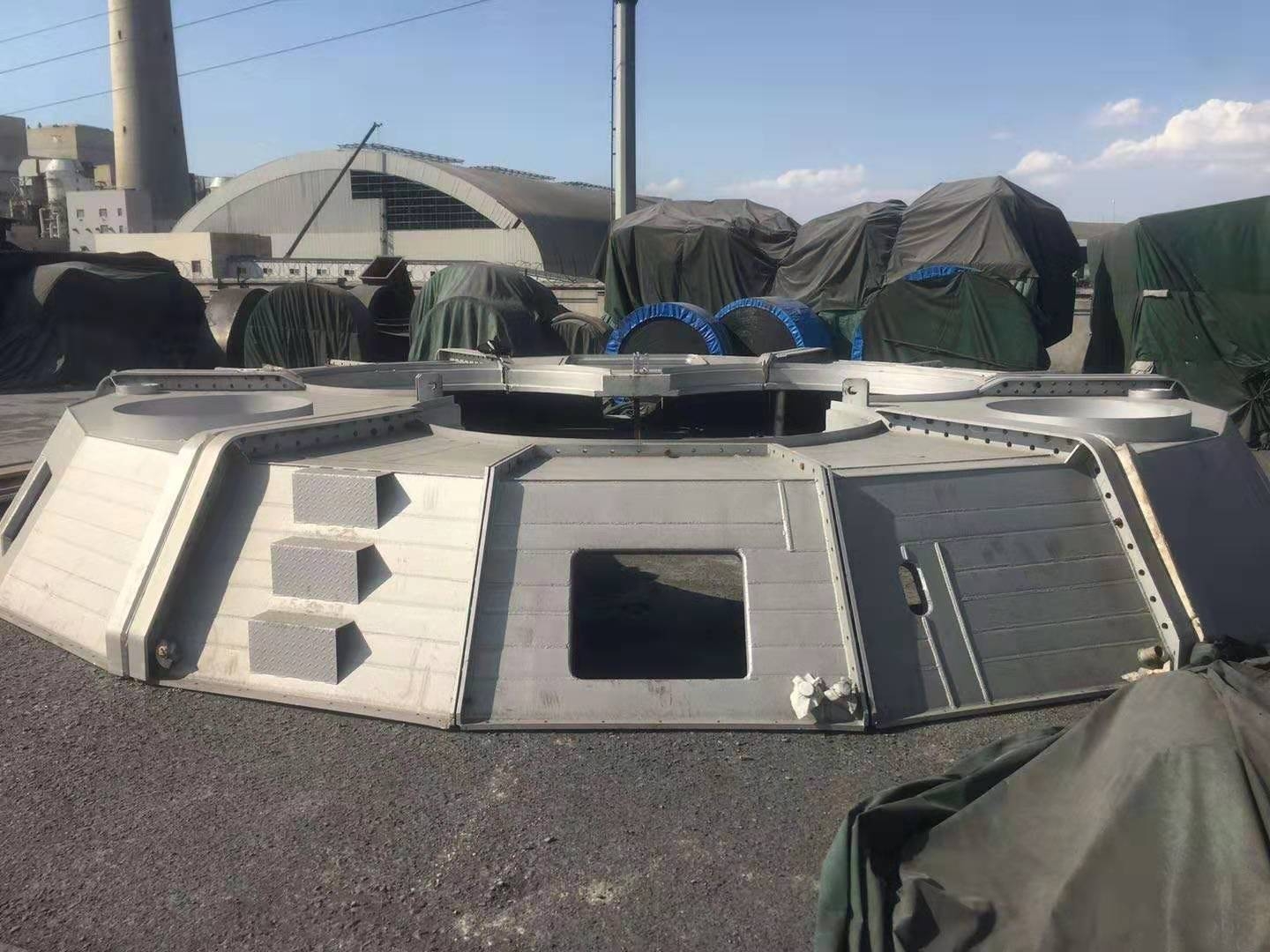

‌All-Metal Furnace Cover for Submerged Arc Furnaces‌

‌Introduction:‌
The all-metal constructed furnace cover is primarily designed for closed furnace types. Manufactured using stainless steel 321 and Q-245R (Grade 20 carbon steel), it features a modular design with an aluminum-based high-temperature refractory lining and forced water cooling system. This robust construction ensures extended service life, superior performance, and simplified maintenance.

‌Materials and Construction‌

► ‌Materials:‌
The water-cooled cover adopts an all-metal structure fabricated from:

• ‌Stainless Steel 321‌: Offers exceptional resistance to high temperatures and corrosion, maintaining optimal performance in the harsh operating environment of submerged arc furnaces. Its chromium-nickel composition forms a protective oxide layer that prevents rust and corrosion, significantly extending service life.

• ‌Q-245R Carbon Steel‌: Provides excellent mechanical strength and toughness, ensuring structural integrity and reliable support under thermal and mechanical stresses.

► ‌Modular Design:‌
Key advantages of our modular construction include:

• ‌Efficient Manufacturing & Installation‌: Prefabricated components enable streamlined production and rapid on-site assembly

• ‌Simplified Maintenance‌: Damaged sections can be replaced individually, minimizing downtime

• ‌Optimized Performance‌: Precision-engineered modules ensure superior sealing and cooling efficiency

► ‌Lining Material:‌
The furnace cover features:

• ‌Aluminum-based high-temperature refractory material‌ with outstanding thermal insulation properties

• ● Effectively blocks heat transfer, reducing energy loss

• ● Excellent thermal shock resistance accommodates thermal expansion/contraction

• ● Maintains lining integrity and sealing performance under extreme conditions

‌Advanced Water Cooling System‌

Our forced water circulation system ensures reliable operation in high-temperature environments:

• ● Internal cooling channels continuously dissipate heat, maintaining safe operating temperatures

• ● Prevents thermal deformation and extends component lifespan

• ● Maintains sealing integrity even under extreme thermal loads

• ‌Smart temperature regulation‌ automatically adjusts water flow for optimal cooling efficiency

‌Key Advantages‌

✔ ‌Extended Service Life‌

• ● High-performance materials withstand prolonged exposure to extreme conditions

• ● Reduces replacement frequency and maintenance costs

• ● Minimizes production downtime

✔ ‌Superior Sealing Performance‌

• ● Advanced modular design ensures airtight operation

• ● Prevents gas leakage and energy loss

• ● Maintains stable furnace atmosphere for consistent product quality

✔ ‌Simplified Maintenance‌

• Modular design enables easy inspection and component replacement

• Routine maintenance focuses on:

• Cooling system performance

• Lining condition monitoring

• Connection integrity checks

✔ ‌Enhanced Energy Efficiency‌

• ● Combined insulation and cooling system minimizes heat loss

• ● Improves thermal efficiency for reduced energy consumption

• ● Lowers production costs while meeting environmental standards

‌Conclusion‌
Our water-cooled furnace cover represents the ideal solution for submerged arc furnace applications, delivering:

• ● Unmatched durability in extreme operating conditions

• ● Improved production efficiency and product quality

• ● Reduced operating costs and environmental impact

• ● Simplified maintenance procedures

Engineered for performance and built to last, this advanced furnace cover provides reliable protection for your critical furnace components.
